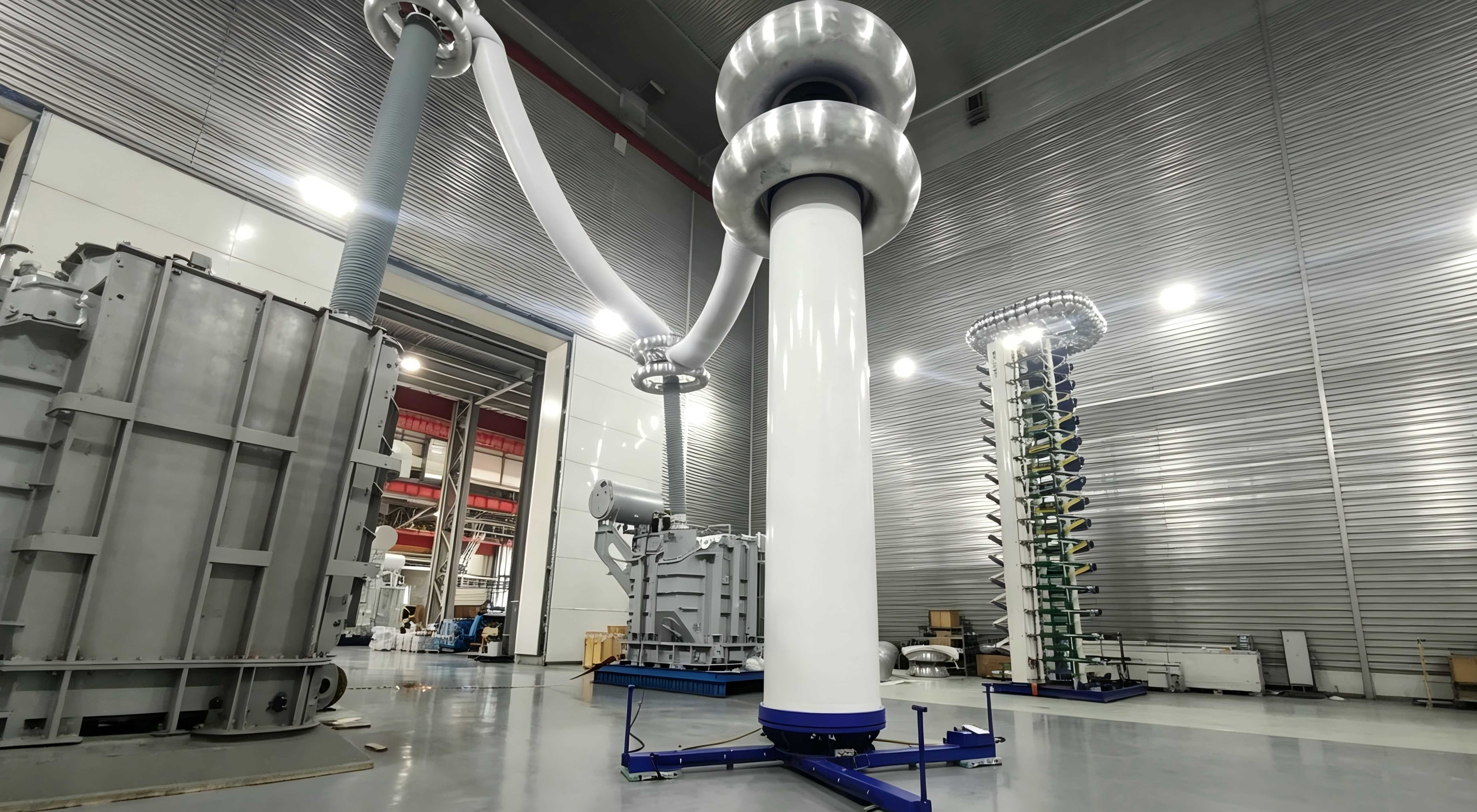

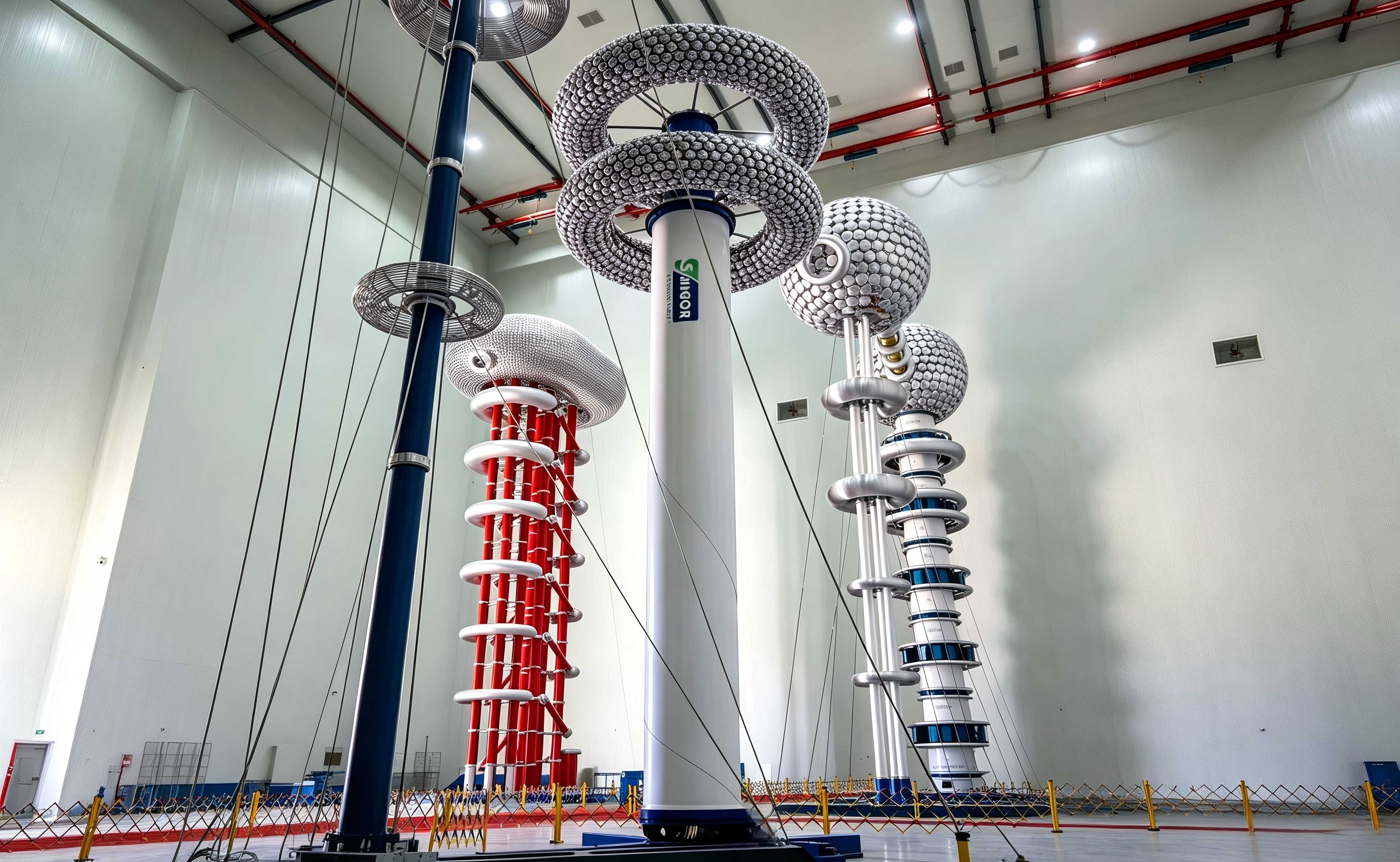

The SF6 insulated standard capacitor is used as Capacitance standard in measuring bridge Circuits to measure the dielectric dissipation Factor tanδ of all types including cables, capacitors, bushings, instrument transformers and power transformers. Further-more, It can be used as high-voltage capacitor for voltage divider circuits of high-voltage transformer test.

The YL series standard capacitors can also be used as the high-voltage section of a capacitive divider. This allows high accurate voltage measurements e.g. such as those required for loss measurements on power transformer.

For very high voltages a grad with discrete capacitor elements achieves a liner field distribution. These results in higher voltage withstand capability even at humidity levels up to 95% without condensation. We use special stainless steel to permit the prefect temperature and voltage coefficient stability.

Advantage

✅ Capacitance :10pF~10000pF

✅ More than 30 sets HV standard capacitors (1000kv class above) in the world market

✅ 3 in1 structure, simplifying the test procedure and decreasing the space requirement in the lab

✅ The even field strength design

✅ Upside–down structure for the electrode to match the impulse voltage measurement in national standard

✅ Tan delta：<1 ×10⁻⁵

✅ Wika air pressure meter, LEMO socket

✅ PD Level <5pC ( special requirement <2pC) following IEC60270

✅ 304# stainless steel, with super low voltage coefficient and temperature coefficient, capacitance stability <0.01 % /year

✅ different base option, wheel base, fixed base, air cushion base, hydraulic driving base

Application

✅ Capacitance & Tan delta Measurement

✅ Reactor Loss & Power Factor Measurement

✅ Accuracy Measurement for Potential Transformer

✅ High Accuracy Voltage Measurement

✅ Partial Discharge Measurement
