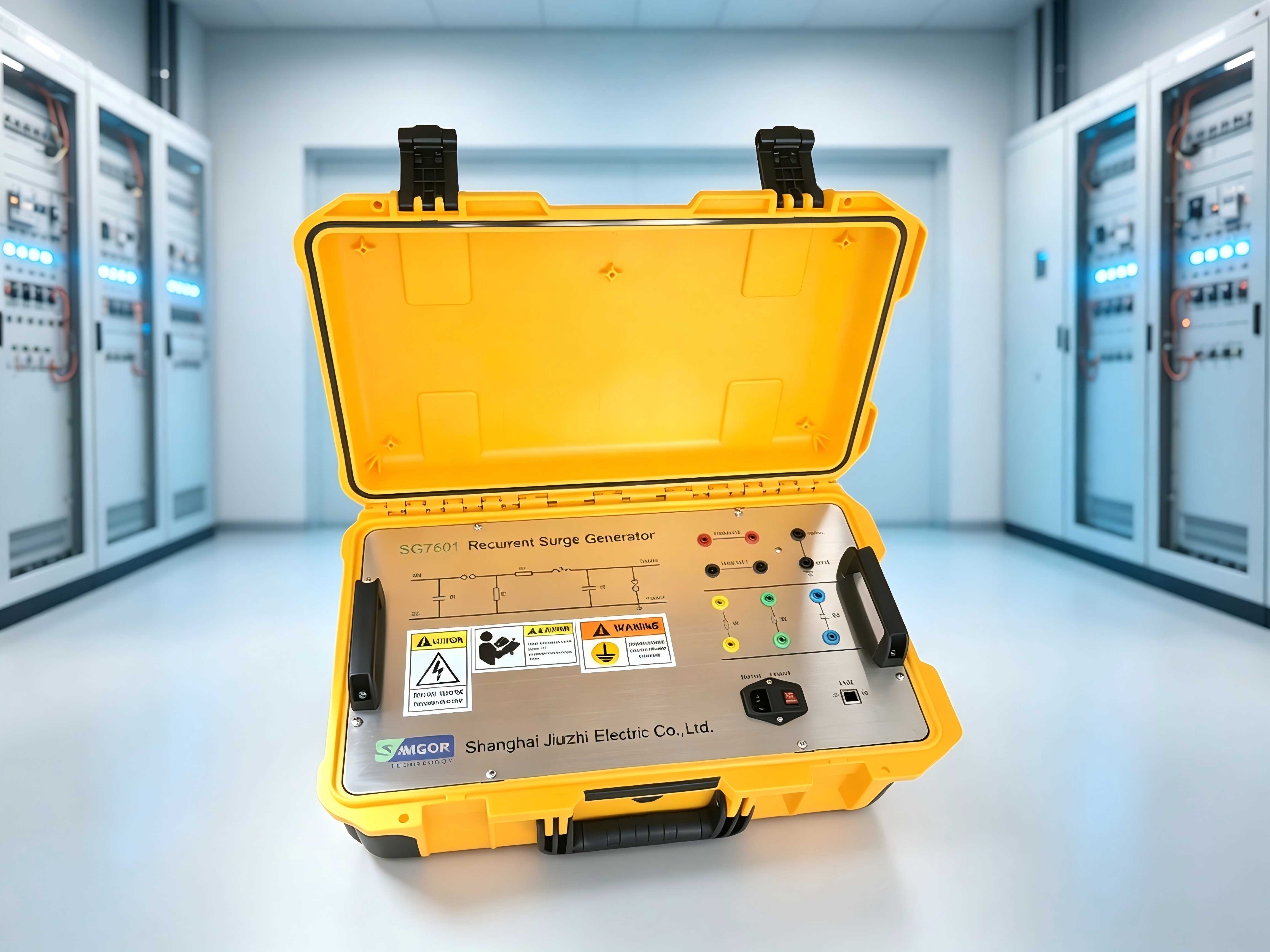

SG7601 Digital Recurrent Surge Generator can be easily, quickly and reliably simulating various pulse waveforms without endangering personnel, through the digital selecting parameters in the impulse circuit.

SG7601 Digital Recurrent Surge Generator is developed based on industry computer, touch screen, window 7, friendly interface. SG7601 Recurrent Surge Generator also can generate the impulse current if connect to right test object.

SG7601 Digital Recurrent Surge Generator can easily generate impulse voltage from 0-500V, repetition frequency is 25Hz, the impulse may be observed and evaluated on any oscilloscope by SG7601, observed and evaluated on i built in 12bit / 100Ms/S digital impulse measuring system by SG7601.

SG7601 include two channels, one for voltage, one for current with shunt. All waveform can be store and analyze and generate report.

Feature

◆ Fine adjustment for all parameters in the major loop, more than 10,000 steps available for front and tail wave resistor, more than 1,000s step available for charging capacitor, load capacitor and inductor;

◆ Wide range of parameter adjusting, user can get inside, it can easily analyze the impulse parameters instead of manual calculation and analyzing;

◆ 12bit high accuracy permits 0.5% voltage more range of waveform than any other single products;

◆ 25Hz Repetition frequency

◆ Digital Impulse measuring and analyzing system vertical 0.3-6uS chopping wave range, each step is 0.1uS;

◆ Perfect and strong plastic cover accuracy;

◆ 0-550V charging voltage range, each step is 1V, , suitable for onsite use;

◆ Reliable performance by 48 hour full voltage non stop test;
