Isolating Switch

HV Isolation/Grounding Switch

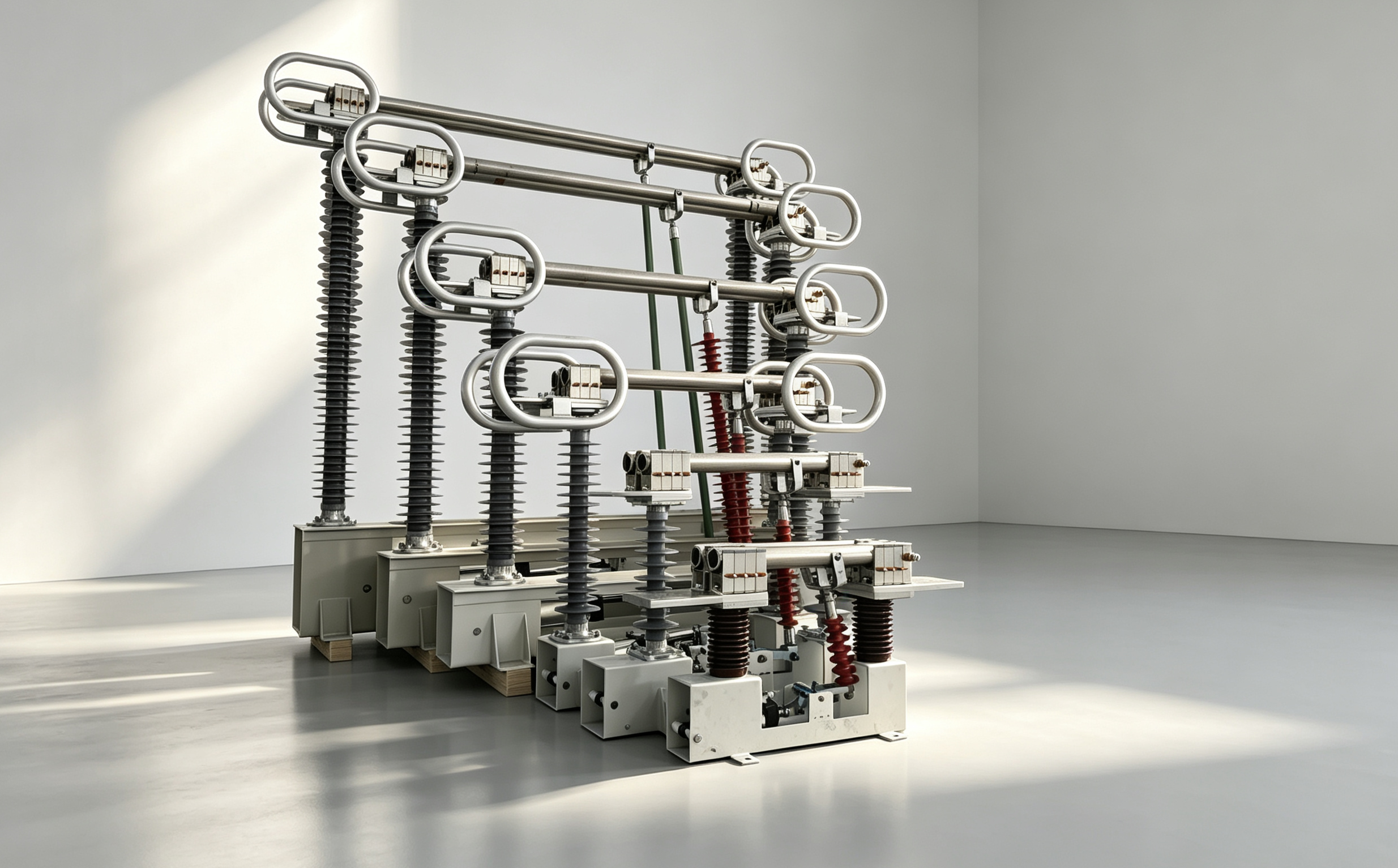

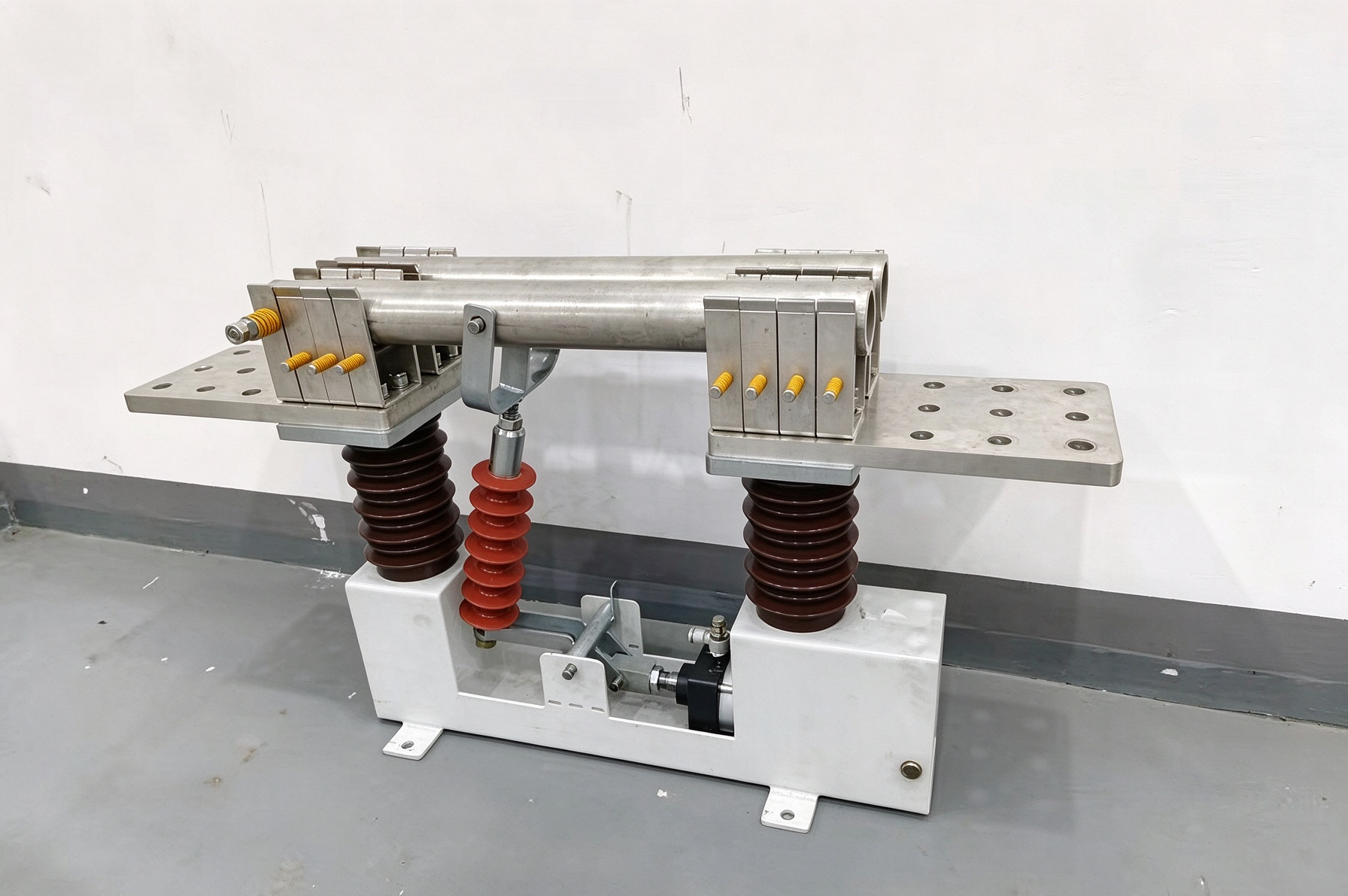

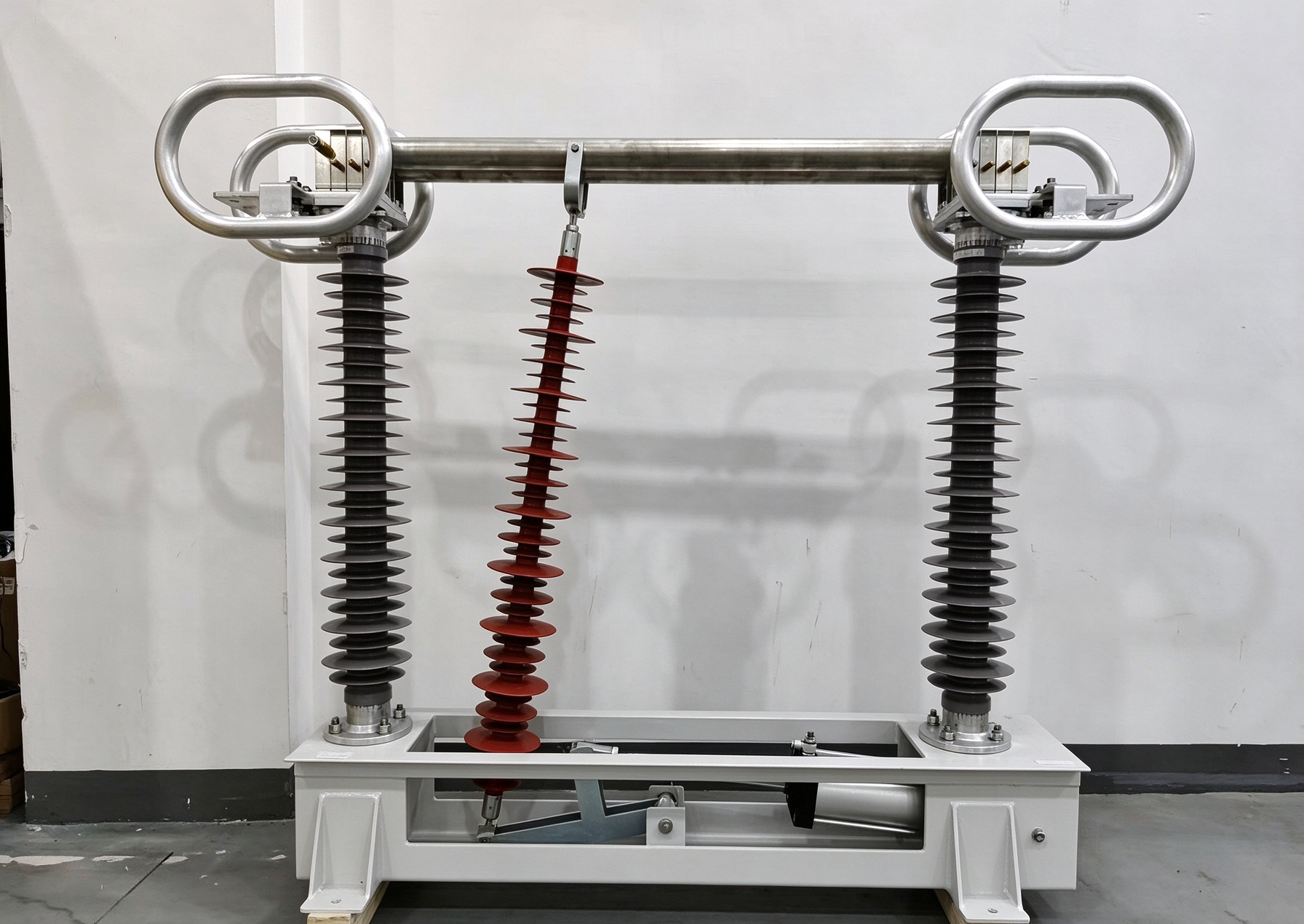

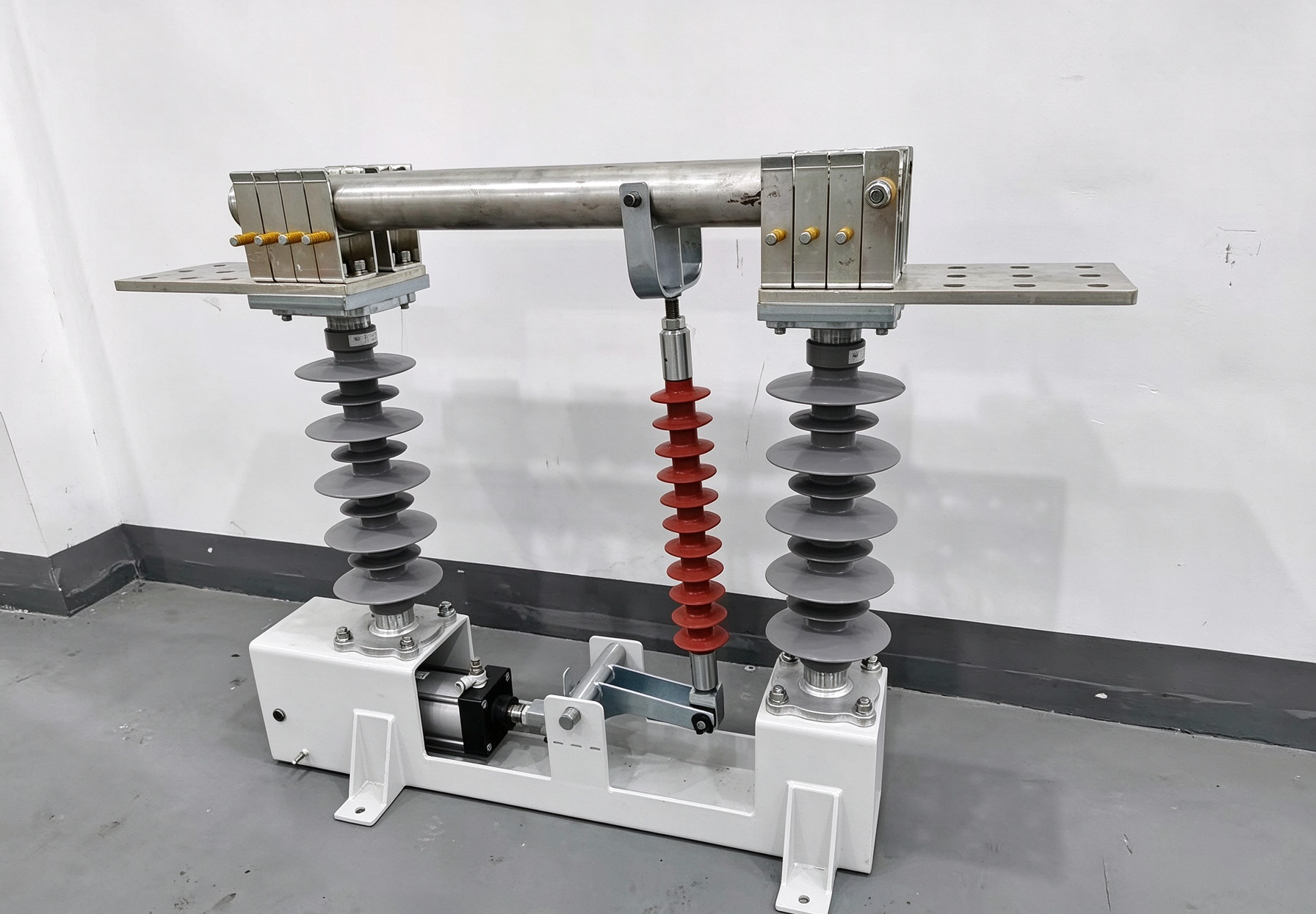

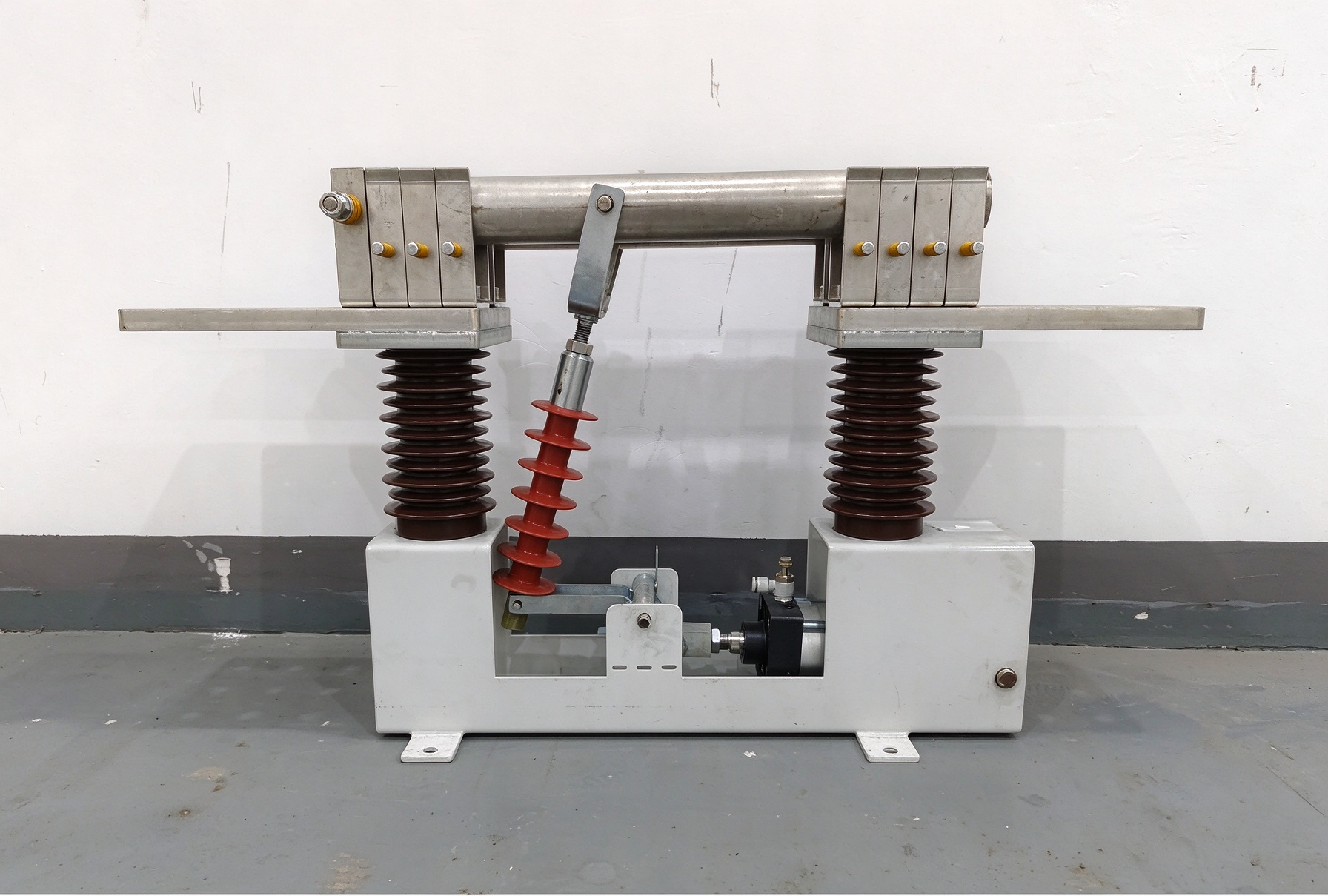

Samgor's pneumatic single-pole disconnector is a switching device used to isolate a part of an electrical circuit for safe maintenance. It utilizes silicone rubber, epoxy, and glass-fiber reinforced plastic (FRP) insulating posts and insulating operating rods with high creepage distances. The U-shaped contacts, conductive rods, and connection terminals are all made of profile materials with surface treatment, and a line-contact design is adopted to ensure reliable connection and reduce operating force. The maintenance-free high-quality air cylinders provide pneumatic drive, requiring no regular lubrication.

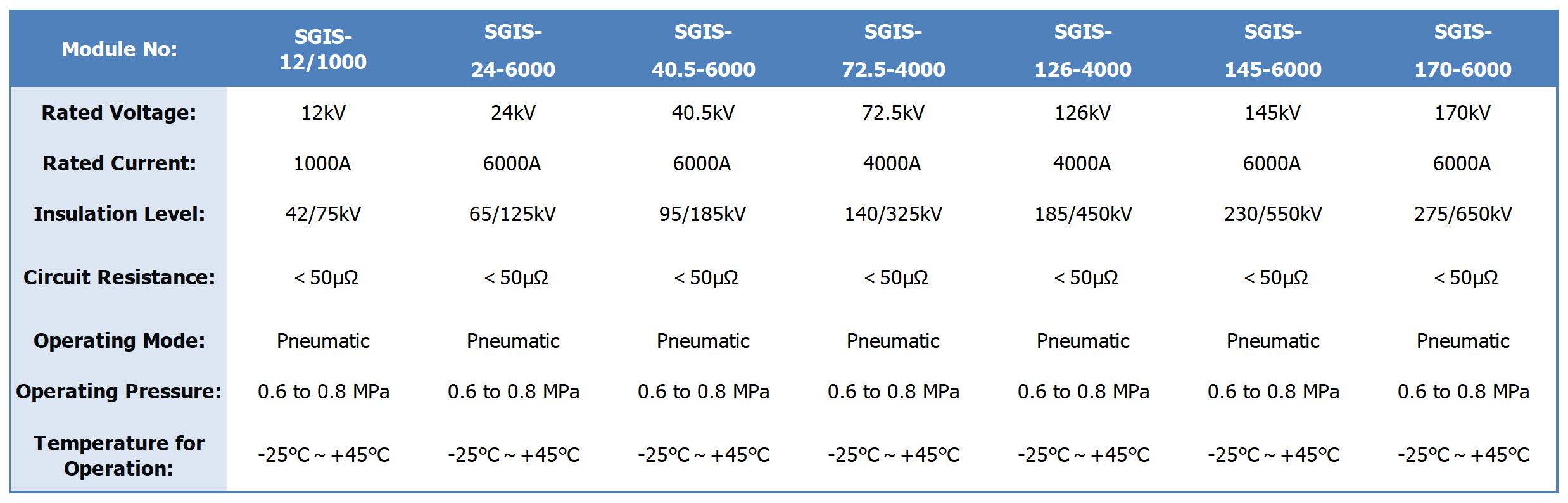

The rated voltage of the high-voltage disconnectors / earthing switches is 12 kV to 170 kV, the rated current is 1000 A to 6000 A, the insulation level is 42/75 kV to 275/650 kV, and the circuit resistance is < 50 MΩ.

Advantage

✅ Air-cushion base frame for transformers (AeroGo)

✅ HV filter inductance for coupling capacitor

✅ Standard capacitor

✅ Additional HV connections

✅ Partial Discharge detectors

✅ Capacitance and power loss factor measuring bridges

Application

✅ Capacitor bank switching – IEC 62271-102 in conjunction with IEC 62271-1

✅ No-load switching in high-voltage lines– IEC 62271-102

✅ Railway and urban rail transit systems – IEC 62271-102 combined with specific railway standards
✅ DC systems and renewable energy – IEC 62271-102, IEC TS 62271-313 (DC circuit breakers) or IEC TS 62271-315 (DC transfer switches)

✅ Isolation and maintenance of power system sections – IEC 62271-102 and IEC 62271-1
