Advantage

✅Compact dimensions resulting in minimum space requirements

✅High flexibility for connecting the HV lead

✅Large range of applicantion and low acoustic noise level (approx 65 to 75 dBA)

✅Sophisticated protection features for optimal test object& personnel protection

Application

✅Regulating transformer with shielded insulating transformer

✅Power noise filter

✅Compensating reactor

✅Fast over-voltage protection unit (included in systems rated 600 kV or higher)

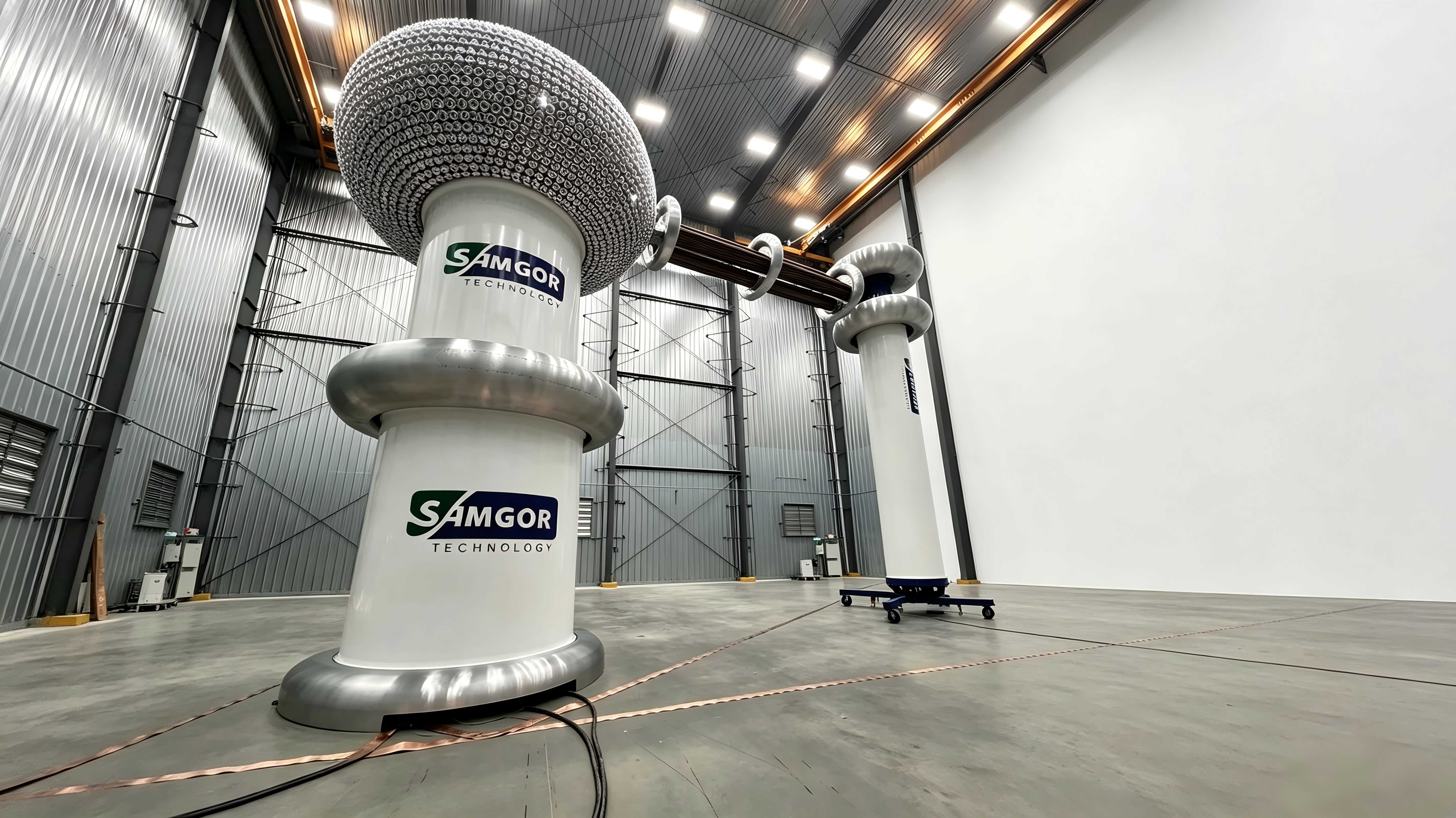

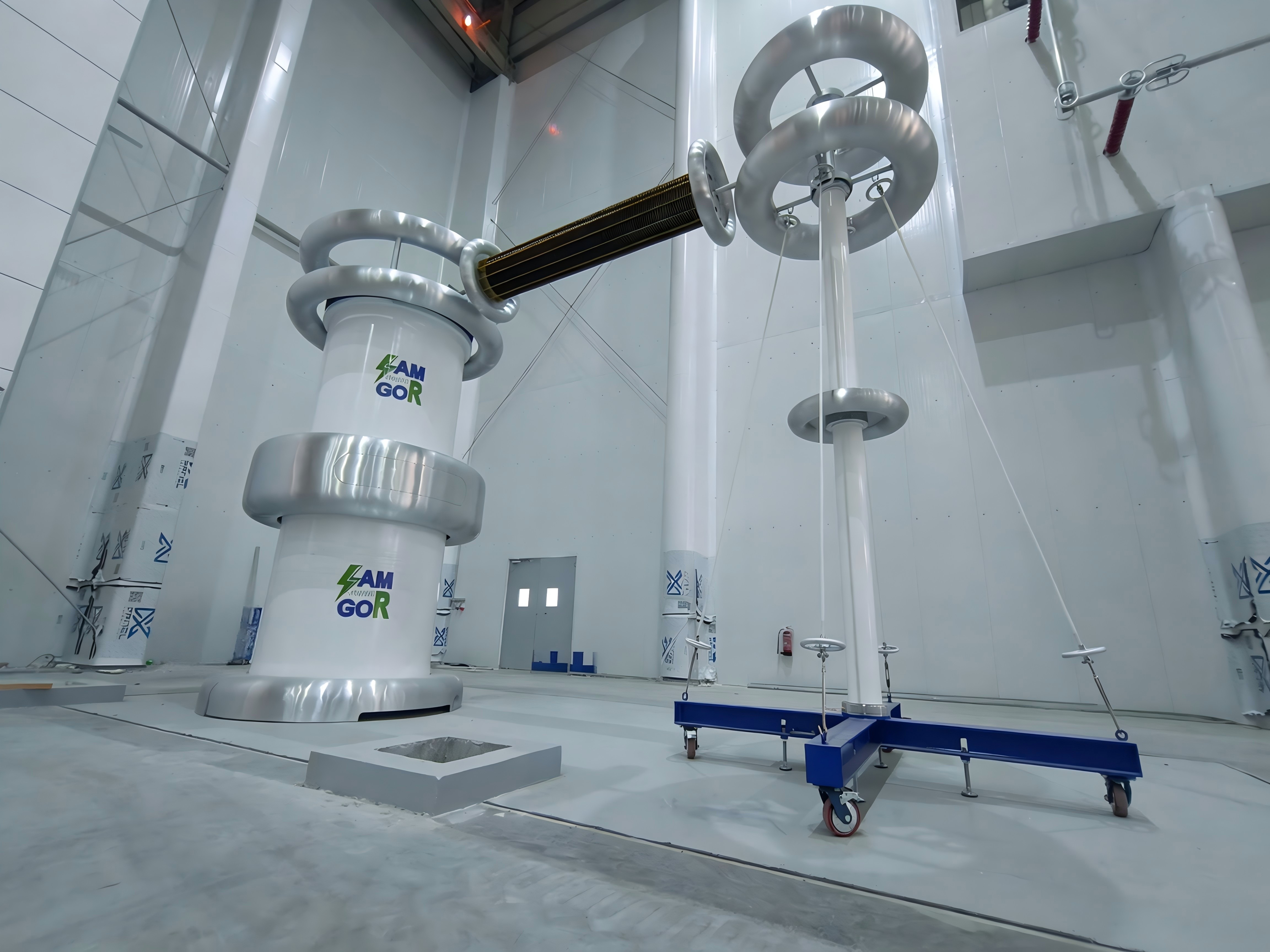

✅Test transformer(s)

✅Coupling capacitor / HV divider / HV filter

✅Control system AC2000 or ACA-2000

✅HV and grounding connections between HV elements. The connection to test object is usually not included.

✅Pre-stage high voltage switchgear cabinet

✅Subordinate-stage high voltage switchgear cabinet
